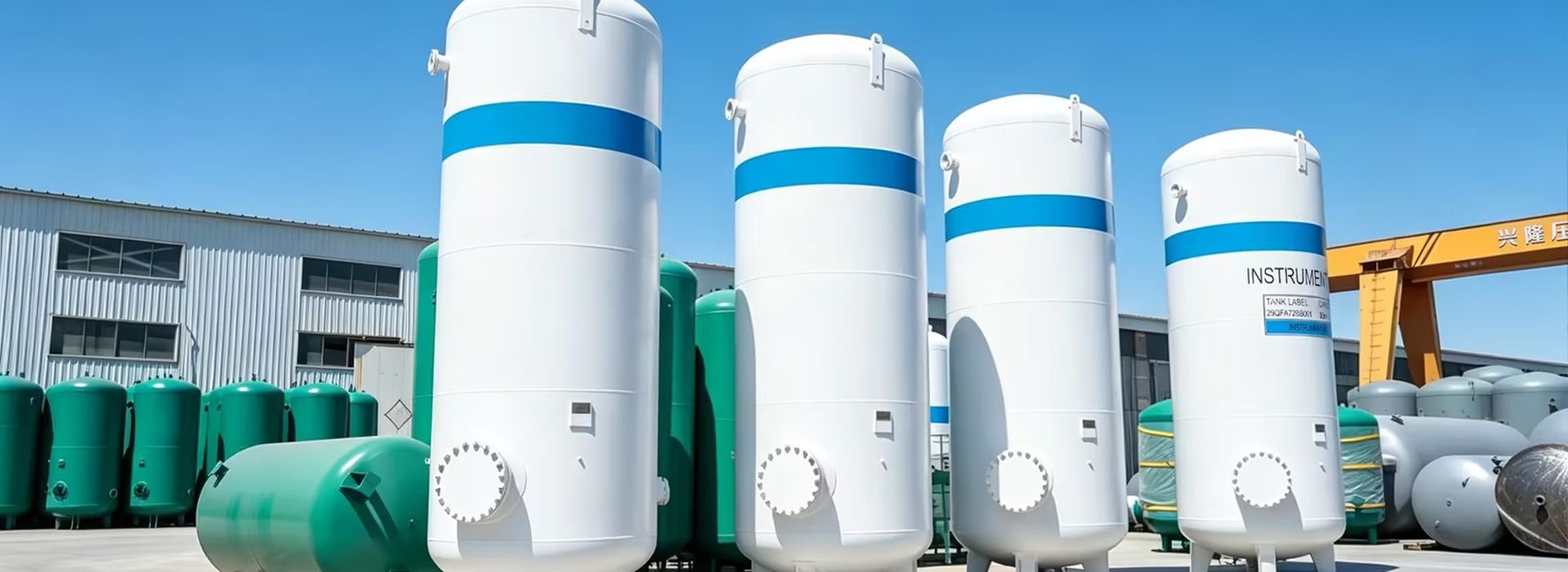

banner

RELIABLE AIR RECEIVER TANKS

Built for Safety, Performance & Durability

Designed for efficient compressed air storage, our air receiver tanks deliver stable system pressure, enhanced operational efficiency, and long-lasting performance across a wide range of industrial applications.

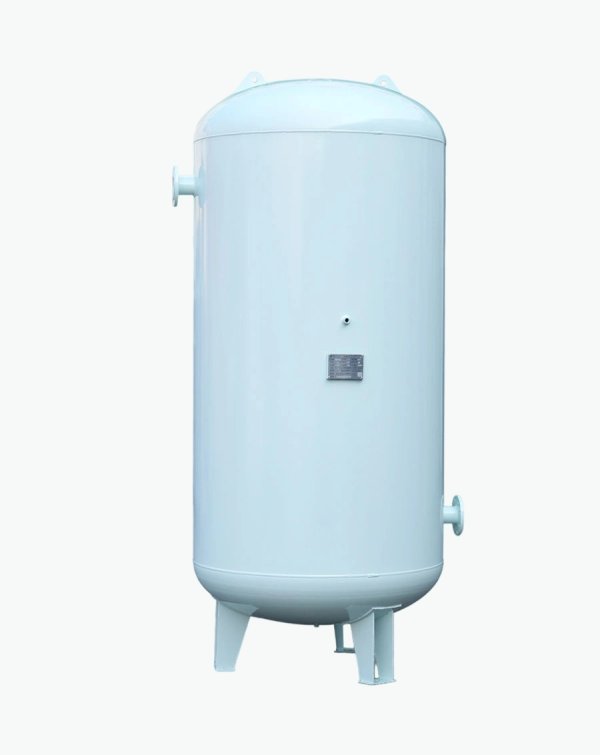

_0000_8

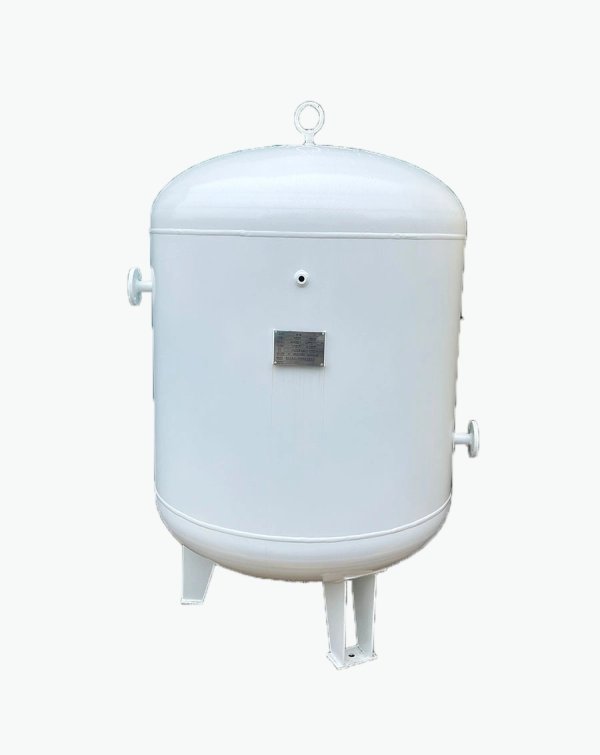

_0001_微信图片_20260527112523_73_14

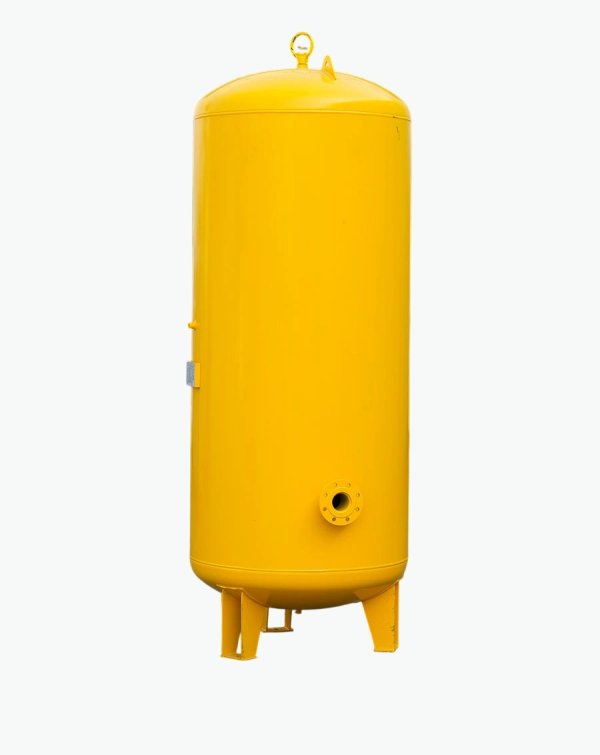

_0003_DSC05614

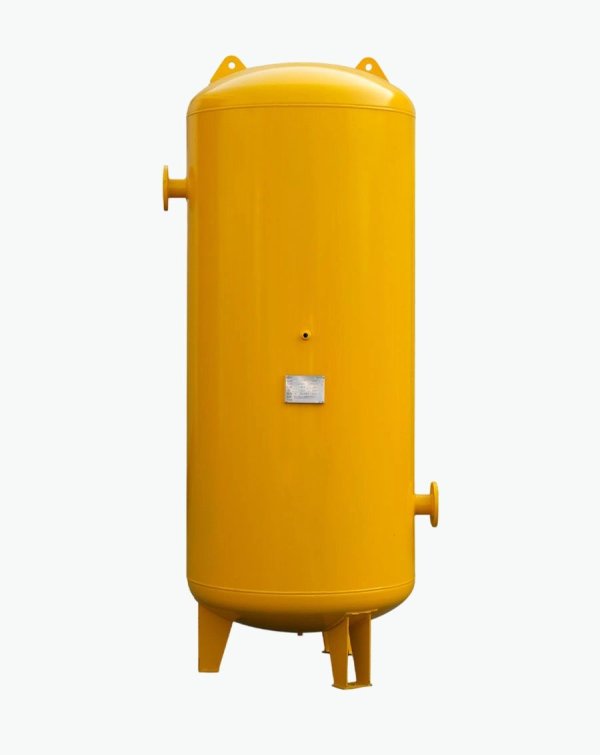

_0002_立式1 (1)
_0000_8
_0001_微信图片_20260527112523_73_14
_0003_DSC05614
_0002_立式1 (1)

Carbon Steel Air Receiver Tank

PRODUCT DESCRIPTION

Specifications & Customization Options：

Carbon steel air tanks are widely used in industrial compressed air systems, nitrogen generation systems, and pressurization systems. They can be used for air storage, pressure buffering, and peak air consumption compensation, and can be customized to meet different project conditions.


Capacity: 0.3 m³–150 m³

Working Pressure: 0.8 MPa–4.0 MPa

Orientation: Vertical / Horizontal

Material: SA-516M Gr.70

Connection: Flange / Thread / Custom Interface

Codes: GB, ASME, PED, NB, MOM, DOSH, JIS, KOSHA, AS, CRN, EAC, IBR, etc., applicable to each project.


  • Pressure Rating: Low Pressure / Medium Pressure / Special Pressure

  • Operating Medium: Compressed Air / Nitrogen / Oxygen / Other Industrial Gases

  • Surface Treatment: Sandblasting / Primer / Topcoat / Custom Anti-corrosion System

  • Internal Treatment: Cleaning / Degreasing / Internal Coating

  • Support Type: Legs / Saddle / Skid-mounted Base

  • Interface Arrangement: Quantity, size, direction, and flange standards can be customized

  • Accessories: Safety valve / Pressure gauge / Drainage device, etc.

  • Project Requirements: Certifications, colors, packaging, and technical documentation can be configured according to the project.

Share to:

(0) Reviews

INQUIRE NOW
Low Pressure
Engineering Volume/Working Pressure
Total Container Height (h) mmNominal Diameter(dn)Air Intake DiameterAir Outlet DiameterSafety Valve  ConnectionDrain Valve ConnectionPressure Gauge
Connection
Ⅰ、Flange Connection of Inlet and Outlet
0.6/0.81865 700  DN65DN65Rc3/4R21/2M14×1.5
0.6/1.01867 700  DN65DN65Rc3/4R21/2M14×1.5
0.6/1.31869 700  DN65DN65Rc3/4R21/2M14×1.5
1.0/0.82153 800  DN80DN80RclR23/4M14×1.5
1.0/1.02153 800  DN80DN80RclR23/4M14×1.5
1.0/1.32157 800  DN80DN80RclR23/4M14×1.5
1.5/0.82264 1000  DN80DN80Rc1-1/4R23/4M14×1.5
1.5/1.02264 1000  DN80DN80Rc1-1/4R23/4M14×1.5
1.5/1.32266 1000  DN80DN80Rc1-1/4R23/4M14×1.5
2.0/0.82764 1000  DN80DN80Rc1-1/4R23/4M20×1.5
2.0/1.02764 1000  DN80DN80Rc1-1/4R23/4M20×1.5
2.0/1.32766 1000  DN80DN80Rc1-1/4R23/4M20×1.5
3.0/0.82920 1200 DN80DN80Rc1-1/4R23/4M20×1.5
3.0/1.02920 1200 DN80DN80Rcl-1/4R23/4M20×1.5
3.0/1.32924 1200 DN80DN80Rc1-1/4R23/4M20×1.5
4.0/0.82982 1400 DN80DN80Rc1-1/4R23/4M20×1.5
4.0/1.02984 1400 DN80DN80Rc1-1/4R23/4M20×1.5
4.0/1.32988 1400 DN80DN80Rc1-1/4R23/4M20×1.5
5.0/0.82883 1600 DN100DN100Rcl-1/2R21M20×1.5
5.0/1.02885 1600 DN100DN100Rc1-1/2R21M20×1.5
5.0/1.32887 1600 DN100DN100Rc1-1/2R21M20×1.5
6.0/0.83118 1650 DN100DN100Rcl-1/2R21M20×1.5
6.0/1.03120 1650 DN100DN100Rcl-1/2R21M20×1.5
6.0/1.33287 1600 DN100DN100Rc1-1/2R21M20×1.5
8.0/0.83260 1900 DN150DN150Rc2R21M20×1.5
8.0/1.03264 1900 DN150DN150Rc2R21M20×1.5
8.0/1.33416 1800 DN150DN150Rc2R21M20×1.5
10.0/0.84410 1800 DN150DN150Rc2R21M20×1.5
10.0/1.04412 1800 DN150DN150Rc2R21M20×1.5
10.0/1.34416 1800 DN150DN150Rc2R21M20×1.5
12.0/0.85210 1800 DN150DN150Rc2R21M20×1.5
12.0/1.05212 1800 DN150DN150Rc2R21M20×1.5
12.0/1.35216 1800 DN150DN150Rc2R21M20×1.5
15.0/0.84469 2200 DN150DN150Rc2R21M20×1.5
15.0/1.05356 2000 DN150DN150Rc2R21M20×1.5
15.0/1.35360 2000 DN150DN150Rc2R21M20×1.5
20.0/0.84830 2400 DN200DN200Rc3R21M20×1.5
20.0/1.04834 2400 DN200DN200Rc3R21M20×1.5
20.0/1.34835 2400 DN200DN200Rc3R21M20×1.5
25/0.85931 2400 DN200DN200Rc3R21M20×1.5
25/1.05936 2400 DN200DN200Rc3R21M20×1.5
25/1.35940 2400 DN200DN200Rc3R21M20×1.5
30.0/0.86706 2500 DN200DN200Rc3R21M20×1.5
30.0/1.06710 2500 DN200DN200Rc3R21M20×1.5
30.0/1.36714 2500 DN200DN200Rc3R21M20×1.5
40/0.88097 2600 DN200DN200Rc3R21M20×1.5
40/1.08101 2600 DN200DN200Rc3R21M20×1.5
40/1.36306 3000 DN200DN200Rc3R21M20×1.5
50.0/0.87902 3000 DN200DN200Rc3R21M20×1.5
50.0/1.07902 3000 DN200DN200Rc3R21M20×1.5
60.0/0.88280 3200 DN200DN200Rc3R21M20×1.5
60.0/1.08364 3200 DN200DN200Rc3R21M20×1.5
75.0/0.89879 3200 DN200DN200Rc3R21M20×1.5
75.0/1.09883 3200 DN200DN200Rc3R21M20×1.5
100/0.811134 3500 DN200DN200Rc3R21M20×1.5
100/1.011429 3500 DN200DN200Rc3R21M20×1.5
Ⅱ、Thread Inlet and Outlet
0.3/0.8G1686 500 DN40DN40Rc3/4R21/2M14×1.5
0.3/1.0G1686 500 DN40DN40Rc3/4R21/2M14×1.5
0.6/0.8G1865 700 DN40DN40Rc3/4R21/2M14×1.5
0.6/1.0G1867 700 DN40DN40Rc3/4R21/2M14×1.5
0.6/1.3G1869 700 DN40DN40Rc3/4R21/2M14×1.5
1.0/0.8G2153 800 DN40DN40Rc3/4R23/4M14×1.5
1.0/0.8G宇2150 780 DN40DN40Rc3/4R21/2M14×1.5
1.0/1.0G2153 800 DN40DN40RclR23/4M14×1.5
1.0/1.3G2157 800 DN40DN40Rc1R23/4M14×1.5
1.5/0.8G2264 1000 DN50DN50RclR23/4M14×1.5
1.5/1.0G2264 1000 DN50DN50RclR23/4M14×1.5
1.5/1.3G2266 1000 DN50DN50Rc1R23/4M14×1.5
2.0/0.8G2764 1000 DN50DN50Rc1R23/4M20×1.5
2.0/1.0G2764 1000 DN50DN50Rc1R23/4M20×1.5
2.0/1.3G2766 1000 DN50DN50Rc1R23/4M20×1.5


Down Load
Medium Pressure
Engineering Volume/
Working Pressure
Total Container Height (h)mmNominal Diameter (dn)Air Intake DiameterAir Outlet DiameterSafety Valve ConnectionDrain Valve ConnectionPressure Gauge Connection
0.6/1.61873 700  DN65 DN65Rc3/4R21/2M14X1.5
0.6/2.51875 700  DN65 DN65Rc3/4R21/2M14X1.5
0.6/3.01877 700  DN65 DN65Rc3/4R21/2M14X1.5
0.6/4.01883 700  DN65 DN65Rc3/4R21/2M14X1.5
1.0/1.62159 800  DN80 DN80Rc1R23/4M14X1.5
1.0/2.52163 800  DN80 DN80Rc1R23/4M14X1.5
1.0/3.02165 800  DN80 DN80Rc1R23/4M14X1.5
1.0/4.02169 800  DN80 DN80Rc1R23/4M14X1.5
1.5/1.62268 1000 DN80DN80Rc1-1/4R23/4M14X1.5
1.5/2.52272 1000 DN80DN80Rc1-1/4R23/4M14X1.5
1.5/3.02276 1000 DN80DN80Rc1-1/4R23/4M14X1.5
1.5/4.02283 1000 DN80DN80Rc1-1/4R23/4M14X1.5
2.0/1.62768 1000 DN80DN80Rc1-1/4R23/4M20X1.5
2.0/2.52772 1000 DN80DN80Rc1-1/4R23/4M20X1.5
2.0/3.02776 1000 DN80DN80Rc1-1/4R23/4M20X1.5
2.0/4.02783 1000 DN80DN80Rc1-1/4R23/4M20X1.5
2.0/1.62768 1000 DN80 DN80Rc1-1/4R23/4M20X1.5
2.0/2.52772 1000 DN80 DN80Rc1-1/4R23/4M20X1.5
2.0/3.02776 1000 DN80 DN80Rc1-1/4R23/4M20X1.5
2.0/4.02783 1000 DN80 DN80Rc1-1/4R23/4M20X1.5
3.0/1.62902 1200 DN80 DN80Rc1-1/4R23/4M20X1.5
3.0/2.52908 1200 DN80 DN80Rc1-1/4R23/4M20X1.5
3.0/3.02908 1200 DN80 DN80Rc1-1/4R23/4M20X1.5
3.0/4.02912 1200 DN80DN80Rc1-1/4R23/4M20X1.5
4.0/1.62992 1400 DN80DN80Rc1-1/4R23/4M20X1.5
4.0/2.52994 1400 DN80 DN80Rc1-1/4R23/4M20X1.5
4.0/3.02994 1400 DN80 DN80Rc1-1/4R23/4M20X1.5
4.0/4.02998 1400 DN80 DN80Rc1-1/4R23/4M20X1.5
5.0/1.62891 600 DN100 DN100 Rcl-1/2R21M20X1.5
5.0/2.52893 1600 DN100DN100Rc1-1/2R21M20X1.5
5.0/3.02893 1600 DN100DN100Rc1-1/2R21M20X1.5
5.0/4.02901 1600 DN100DN100Rc1-1/2R21M20X1.5
6.0/1.63291 1600 DN100DN100Rc1-1/2R21M20X1.5
6.0/2.53291 1600 DN100DN100Rc1-1/2R21M20X1.5
6.0/3.03293 1600 DN100DN100Rc1-1/2R21M20X1.5
6.0/4.03301 1600 DN100DN100Rc1-1/2R21M20X1.5
8.0/1.63418 1800 DN150DN150Rc2R21M20X1.5
8.0/2.53430 1800 DN150DN150Rc2R21M20X1.5
8.0/3.03434 1800 DN150DN150Rc2R21M20X1.5
10.0/1.64418 1800 DN150DN150Rc2R21M20X1.5
10.0/2.54430 1800 DN150DN150Rc2R21M20X1.5
10.0/3.04434 1800 DN150DN150Rc2R21M20X1.5
12.0/1.65218 1800 DN150DN150Rc2R21M20X1.5
12.0/2.55230 1800 DN150DN150Rc2R21M20X1.5
12.0/3.05234 1800 DN150DN150Rc2R21M20X1.5
15.0/1.65364 2000 DN150DN150Rc2R21M20X1.5
15.0/2.55384 2000 DN150DN150Rc2R21M20X1.5
15.0/3.05384 2000 DN150DN150Rc2R21M20X1.5
20.0/1.64830 2400 DN200DN200Rc3R21M20X1.5
20.0/2.54855 2400 DN200DN200Rc3R21M20X1.5
20.0/3.04859 2400 DN200DN200Rc3R21M20X1.5


Down Load
Customizable

Customers can provide drawings or technical requirements. We can support customization based on:

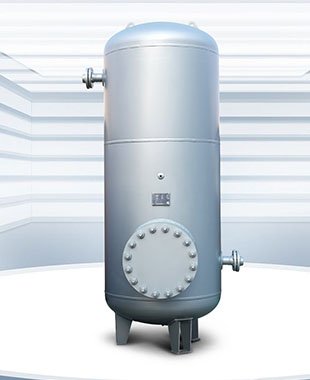

  • _0000_19

    • Manhole or inspection opening

    • Lifting lug and support structure

    • Internal and external coating

    • Paint color

    • Logo or nameplate requirement

    • Packaging and shipping requirement

    • Certification and document requirements

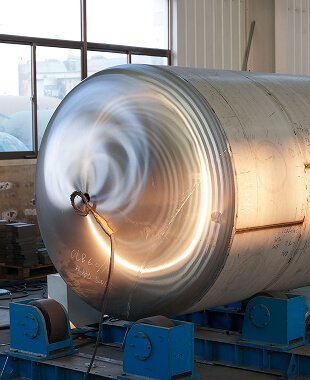

  • customizable_img2

    • Tank capacity

    • Design pressure and working pressure

    • Vertical or horizontal structure

    • Carbon steel or stainless steel material

    • Tank diameter and height/length

    • Inlet and outlet size

    • Nozzle quantity and position

    • Drain port, safety valve port, pressure gauge port

Inquire Now
Related Products

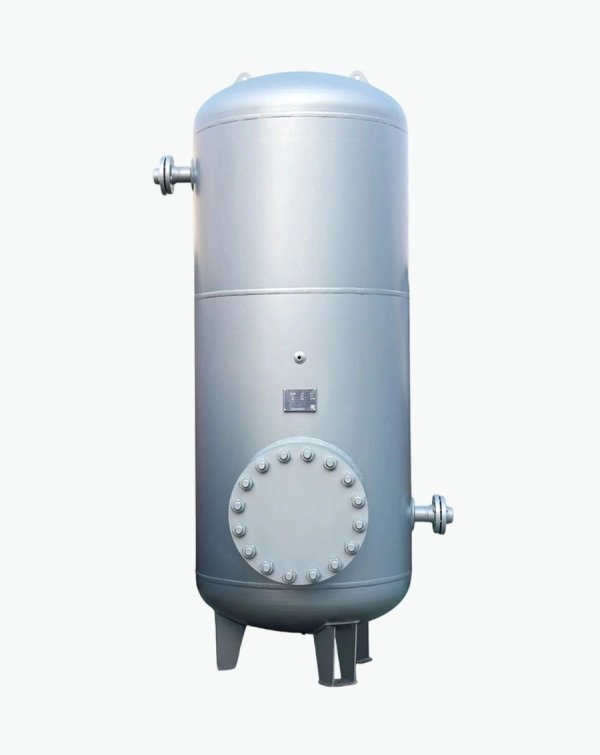

Stainless Steel Air Receiver Tank
